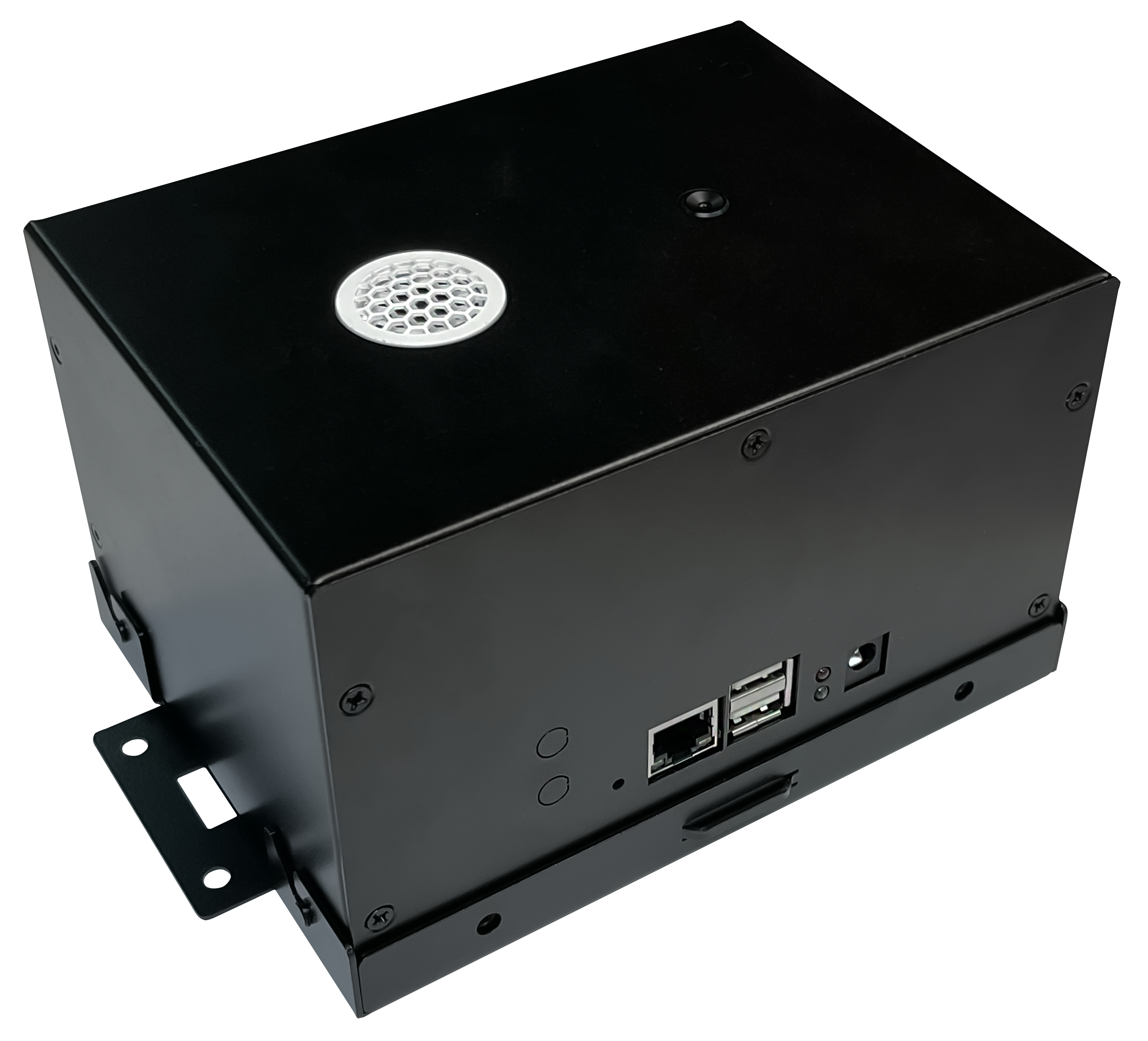

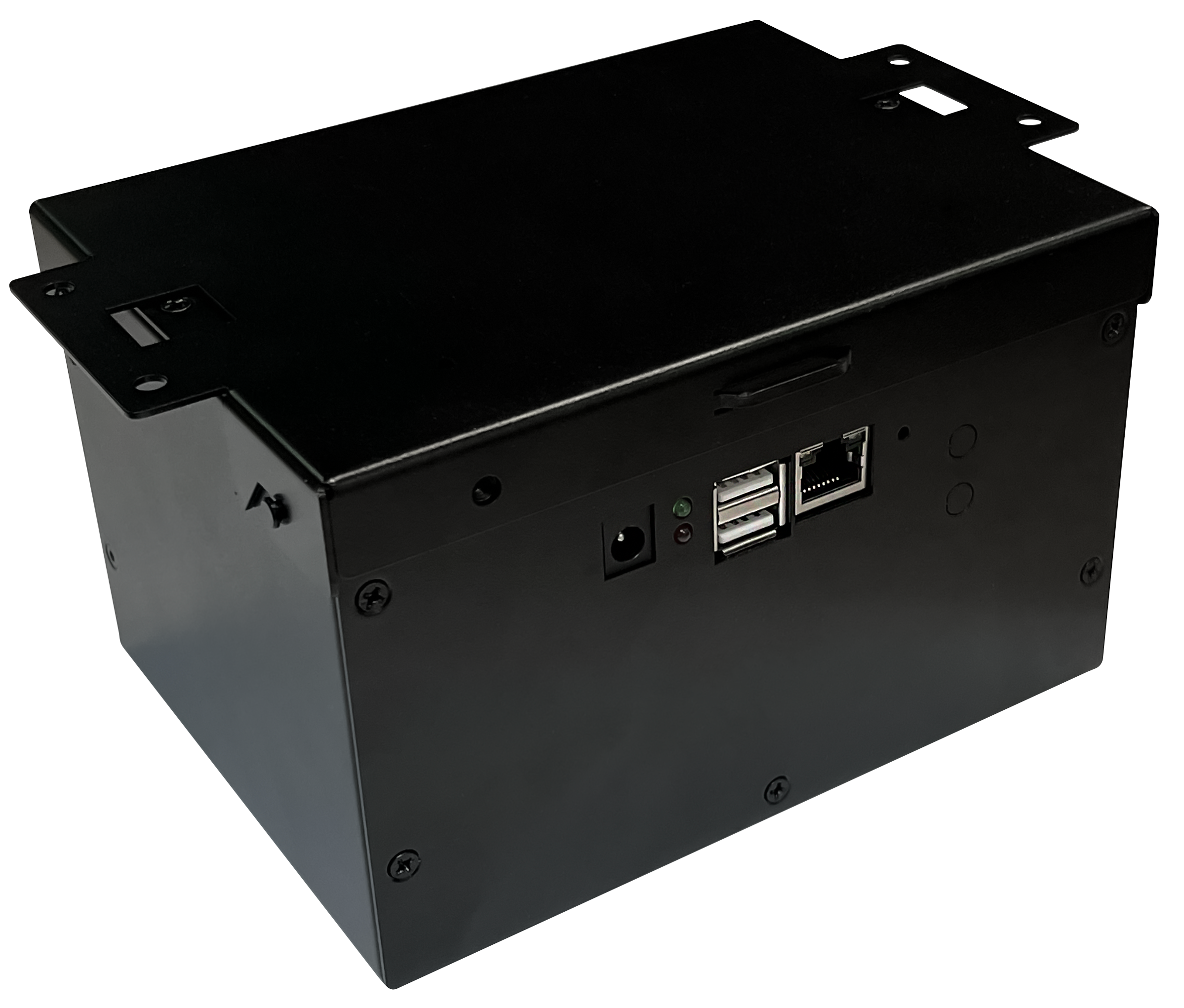

EV Parking Lot Detector
SEN-3202P
The best way to detect the high temperature from vehicle or charger
Able to integrate with AC relay or Charger via API to cut off the power for dangerous situations
The best way to detect the high temperature from vehicle or charger
Able to integrate with AC relay or Charger via API to cut off the power for dangerous situations
Embedded with distance sensor and LED for vehicle occupancy
Provide web interface software for advanced settings, and MQTT/Modbus for data transmission

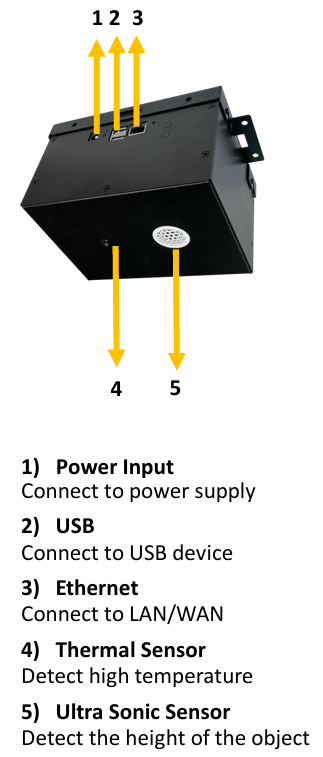

SPECIFICATION & I/O INTERFACE
| CPU | Quad-core Cortex-A7 |
| CPU Frequency | 1.2GHZ |
| Memory | 512MB RAM |
| Storage | eMMC 8GB |
| Ethernet | 1x RJ-45 10/100Mbps |
| USB | 2x USB2.0 (1 type A + 1 type C) |
| Distance Sensor | Type: Ultra Sonic Range: 0 ~ 400cm FOV: 20° |
| Thermal Sensor | Type: 32x24 Thermal Matrix Range: -20℃ ~ 400℃ FOV: up to 110° |
| LED | Green: Vacant Red: Occupied |
Others
| Power Supply | 12V |
| Power Consumption | 6W |
| Operation Temp. | -10°C to 65°C (14°F to 149°F) |
| Storage Temp. | -20°C to 75°C (-4°F to 167°F) |
| Fixedness | Attachable Mounting ear with screws |
| Dimension | 160x120x100mm (WxDxH) |
