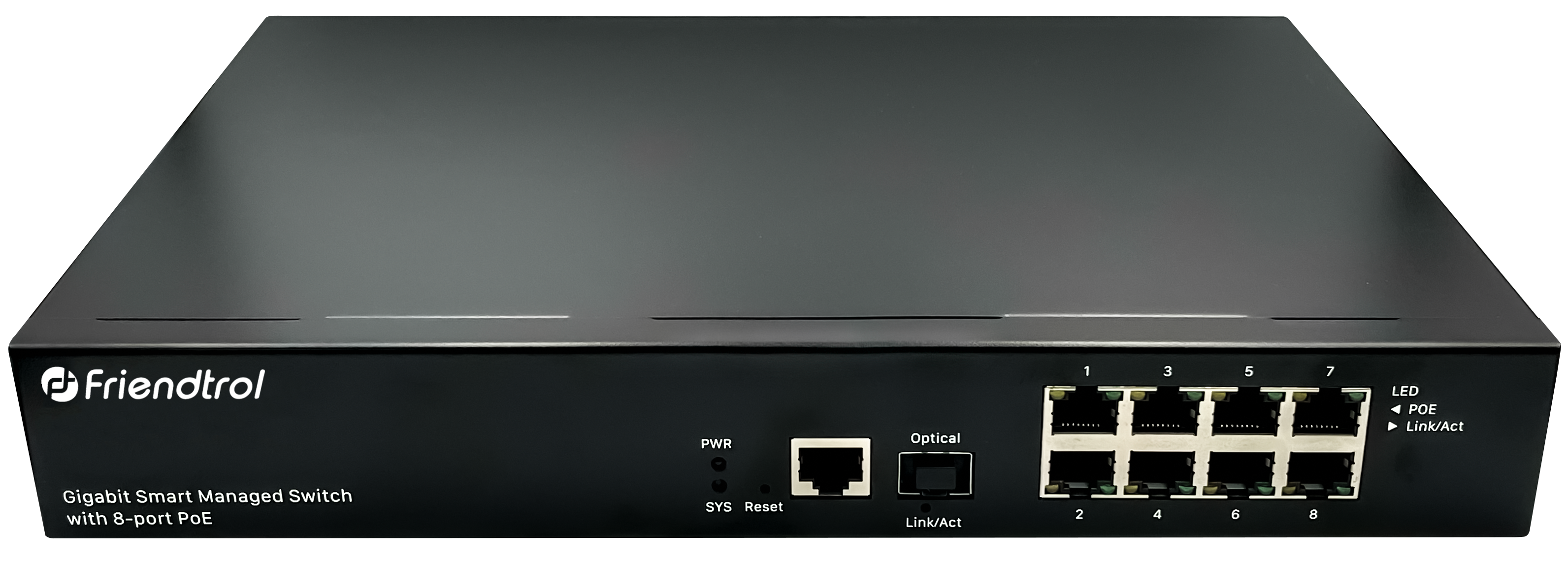

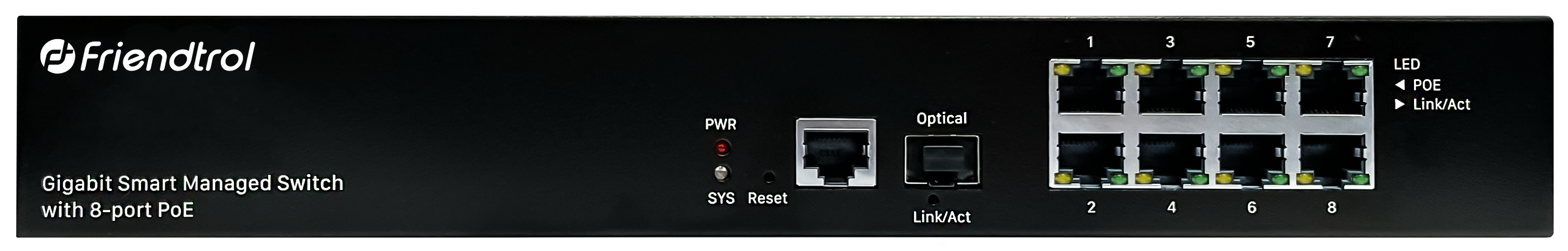

Smart Managed IP Switch with 8port PoE
SW-5108PoE
1. Dedicated control interface for different applications, such as AV over IP
2. The most user-friendly IP switch for OT (Operational Technology)
Dedicated control interface for different applications, such as AV over IP
The most user-friendly IP switch for OT (Operational Technology)
Support graphic control to see the status of each port and reboot PoE independently
Independently detect power and current for each LAN port
Support partial L3 protocols, such as IGMP Multicast
Allow custom 3rd party software embedded to support more functions, such as Nx Witness
Support IP watchdog to reboot PoE for troubleshooting

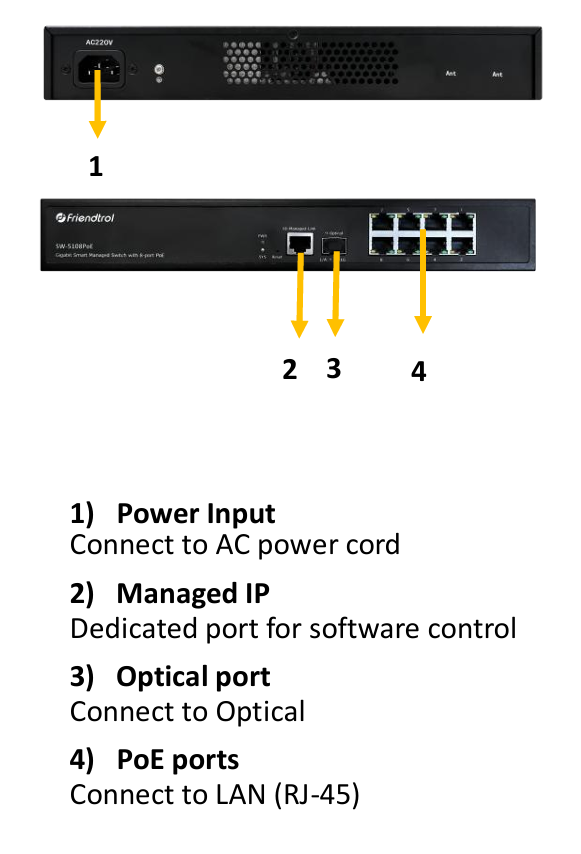

SPECIFICATION & I/O INTERFACE
| CPU | Quad-core Cortex-A55 |
| CPU Frequency | 1.8 GHZ |
| Memory | RAM 2GB |
| Storage | eMMC 32GB |
| Ethernet | 8 x 10/100/1000 MbE (PoE) 1x Managed IP 1× 1GbE optical port |
| PoE | Support up 30W for each port |
| Switch Type | L2+/Lite L3 management switch |
Others

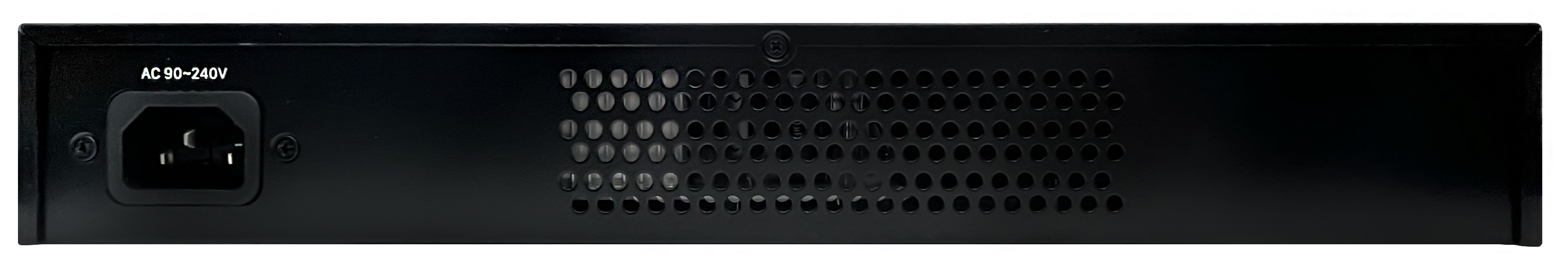

| Power Supply | AC 100-240V |
| Power Consumption | Up to 120W |
| Operation Temp. | -10°C to 70°C (14°F to 158°F) |
| Storage Temp. | -20°C to 75°C (4°F to 167°F) |
| Fixedness | 1RU Rack Mount |
Management Characters
| System | System information, log information, port information, link aggregation, MAC address table |
| Network | DNS configuration, DNS host configuration, system time |
| Ports | Port Configuration, Port Anomaly Protection, Link Aggregation, EEE Configuration, Jumbo Frame Configuration, Port Security, Port Isolation, Storm Control |
| VLAN | VLAN configuration, Voice VLAN, Protocol VLAN configuration, MAC VLAN configuration, Surveillance VLAN, GVRP |
| Mac Address | Dynamic MAC address table, static MAC address table, MAC address filtering table, port security MAC address table |
| Spanning Tree Protocol | Function settings, port settings, instance settings, instance port settings, message statistics |
| ERPS | Functional Configuration, ERPS Example |
| DHCP | Feature configuration, address pool configuration, VLAN interface address group configuration, client list, client static binding table |
| Multicast | Basic Functions、IGMP Snooping、MLD Snooping、MVR |
| Routing | IPv4 Management Interface, IPv6 Management Interface, Static routing |
| Security | RADIUS、TACACS+、AAA、Management channel configuration, authentication features, port security, port isolation, storm control、DoS anti-attack, dynamic ARP inspection、DHCP Snooping、IP Source Guard |
| ACL | MACACL、MAC ACE、PV4 ACL、PV4 ACE、Pv6 ACL、PV6 ACE、ACL binding |
| QoS | Basic Functions, Bandwidth Limiting |
| Equipment Diagnostics | Logging function、 mirroring function、Ping、Traceroute、Electrical port testing、 optical module information、 UDLD protocols |
| Equipment Management | User configuration, firmware management, configuration management, SNMP configuration, RMON configuration |
Functional Characteristics
| Type | Store-and-forward |
| Switching capacity | 28Gbps |
| Packet forwarding ratio | 20.832Mpps |
| MAC Address Table | 4K |
| Forwarding Delay | <5us |
| Network Technology | Support ring topology, star topology, bus topology, tree topology, etc. |
| Jumbo Frame | Support 10K Bytes |
