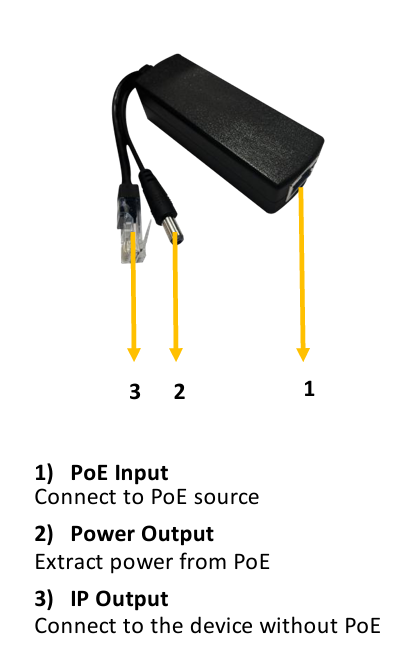

48V to 5V PoE Splitter
PW-1201
The most cost-effective solution to divide PoE into IP and DC Power
Support Plug & Play for efficient installation
The most cost-effective solution to divide PoE into IP and DC Power
Support Plug & Play for efficient installation
Support source with or without PoE
The most convenient tool to integrate the devices with and without PoE
Support 15W power (IEEE 802.3 at/af)
SPECIFICATION & I/O INTERFACE
| Input | RJ-45 (PoE) |
| PoE | IEEE 802.3 at/af |
| Input Voltage in PoE | 44-57V |
| Transmission Distance (PoE) | Up to 150m |
| Output |
|
| Output Voltage | 5V |
Others
| Dimension | 79x27x27mm (LxWxH) |
| Power | Passive powered via PoE |
