Single Phase Power Meter (110V)
PM-1102A
The most cost-effective solution to evaluate power
Support RS-485 interface % Modbus for data transmission
The most cost-effective solution to evaluate power
Support RS-485 interface % Modbus for data transmission

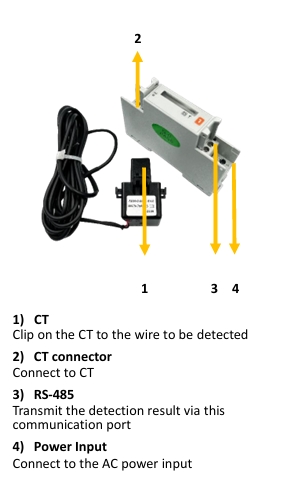

Work with the CT which can support up to 80A
Working with Edge Controller for further applications
SPECIFICATION & I/O INTERFACE
| Type | Single Phase |
| Supported Voltage | AC 100~130V |
| Frequency | 50Hz |
| Pulse Constant Value | 600 imp/KWh |
| Serial Port | 1 x RS-485 For data communication |
| CT | 1 wire Support up to 80A |
| Detection | V、A、KW |
Others
| Power Supply | AC 110 |
| Operation Temp. | -10°C to 75°C |
| Storage Temp. | -20°C to 85°C |
| Fixedness | |
| Dimension |
