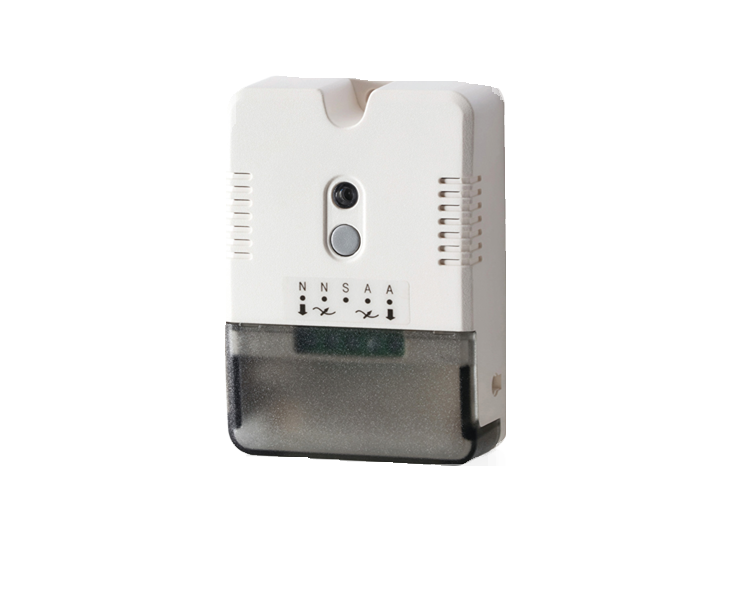

BLE Mesh Power Relay
LC-1200S
BLE design to save power consumption.
Support the structure of Mesh to extend the transmission distance.
BLE design to save power consumption.
Support the structure of Mesh to extend the transmission distance.
AC design to allow user adding or revising power loop easily.
Adopt automative level components to enhance the safety protection.
Support power surge and overloading protection to expand its life cycle.

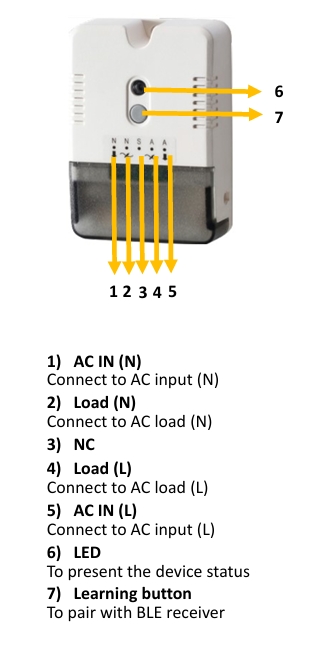

SPECIFICATION & I/O INTERFACE
| Wireless | 2.4GHz BLE Mesh |
| Transmission Distance | 10m |
| Working Voltage | AC 100V~240V, 50/60Hz |
| Max Loading | 500W |
Others
| Power Supply | AC 100V~240V |
| Power Consumption | 2W |
| Operation Temp. | -10°C to 65°C (14°F to 149°F) |
| Storage Temp. | -20°C to 75°C (-4°F to 167°F) |
| Enclosure | Plastic |
| Fixedness | Wall mounting with screws |
| Dimension | 86 x 61 x 26mm (WxDxH) |
| Weight |
