RS-485 to BLE Mesh Gateway
LC-1200M
BLE design to save power consumption.
Support the structure of Mesh to extend the transmission distance.
BLE design to save power consumption.
Support the structure of Mesh to extend the transmission distance.
Support max 80 Power Relays
Used in different applications, such as lighting control, building automation or even industrial control.
Support different baud rate for different system (1200 ~ 115200 bps)
SPECIFICATION & I/O INTERFACE
| Wireless | 2.4GHz BLE Mesh |
| Transmission Distance | 10m |

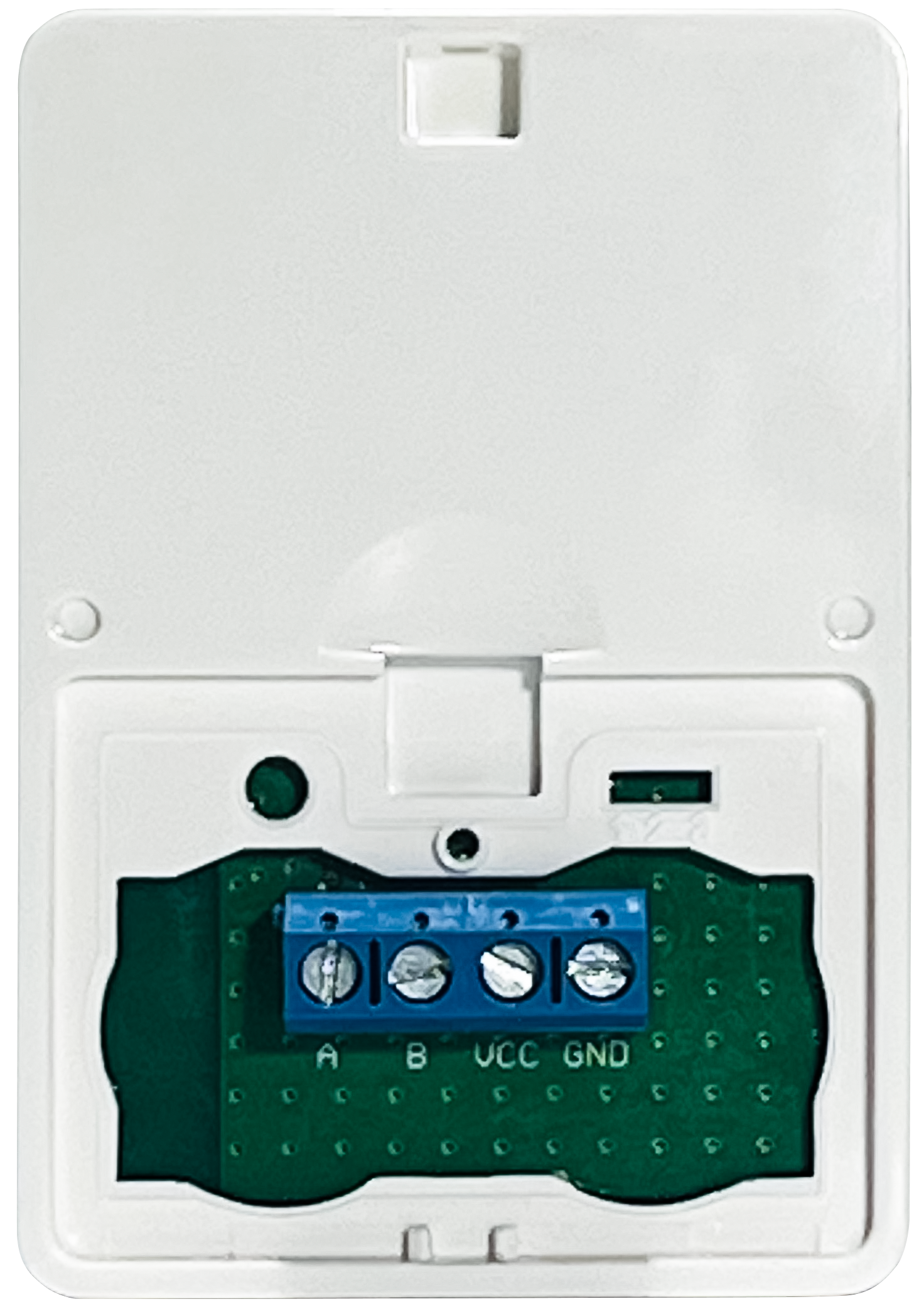

| RS-485 | 1x 2pins phoenix terminal block |
| Protocol | Modbus RTU |
| Device ID | 1 ~ 15 Device ID Address Setting |
Others
| Power Supply | DC 12V 1x 2pins phoenix terminal block |
| Power Consumption | 2W |
| Operation Temp. | -10°C to 65°C (14°F to 149°F) |
| Storage Temp. | -20°C to 75°C (-4°F to 167°F) |
| Enclosure | Plastic |
| Fixedness | |
| Dimension | |
| Weight |
