Modbus RTU to MQTT Intelligent Gateway
GW-1102B
Easy to install the device and complete the software setup.
Support 2.4GHz Wi-Fi.
Easy to install the device and complete the software setup.
Support 2.4GHz Wi-Fi.
Support the conversion between Modbus RTU and MQTT.
Provide 50 tags for reading (RTU).
Provide 10 tags for writing.
Support wide input voltage range 9-24V.

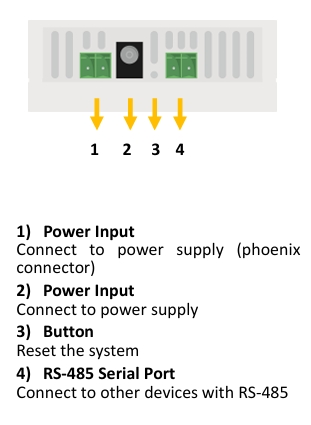

SPECIFICATION & I/O INTERFACE
| Wireless | 1 x Wireless Module WiFi 802.11 b/g/n (2.4G) Up to 150Mbps |
| RS-485 Serial Port | 1 x 2pins-phoenix terminal block For RS-485 only |
Others
| Power Supply | 9-24V DC |
| Power Consumption | Up to 5W |
| Operating Temperature | -20°C to 75°C (4°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Enclosure | Plastic |
| Fixedness | Mounting Ear with Screws |
| Device Dimension (WxDxH) | 100x80x30 mm (3.9”x3.1”x1.2”) |
