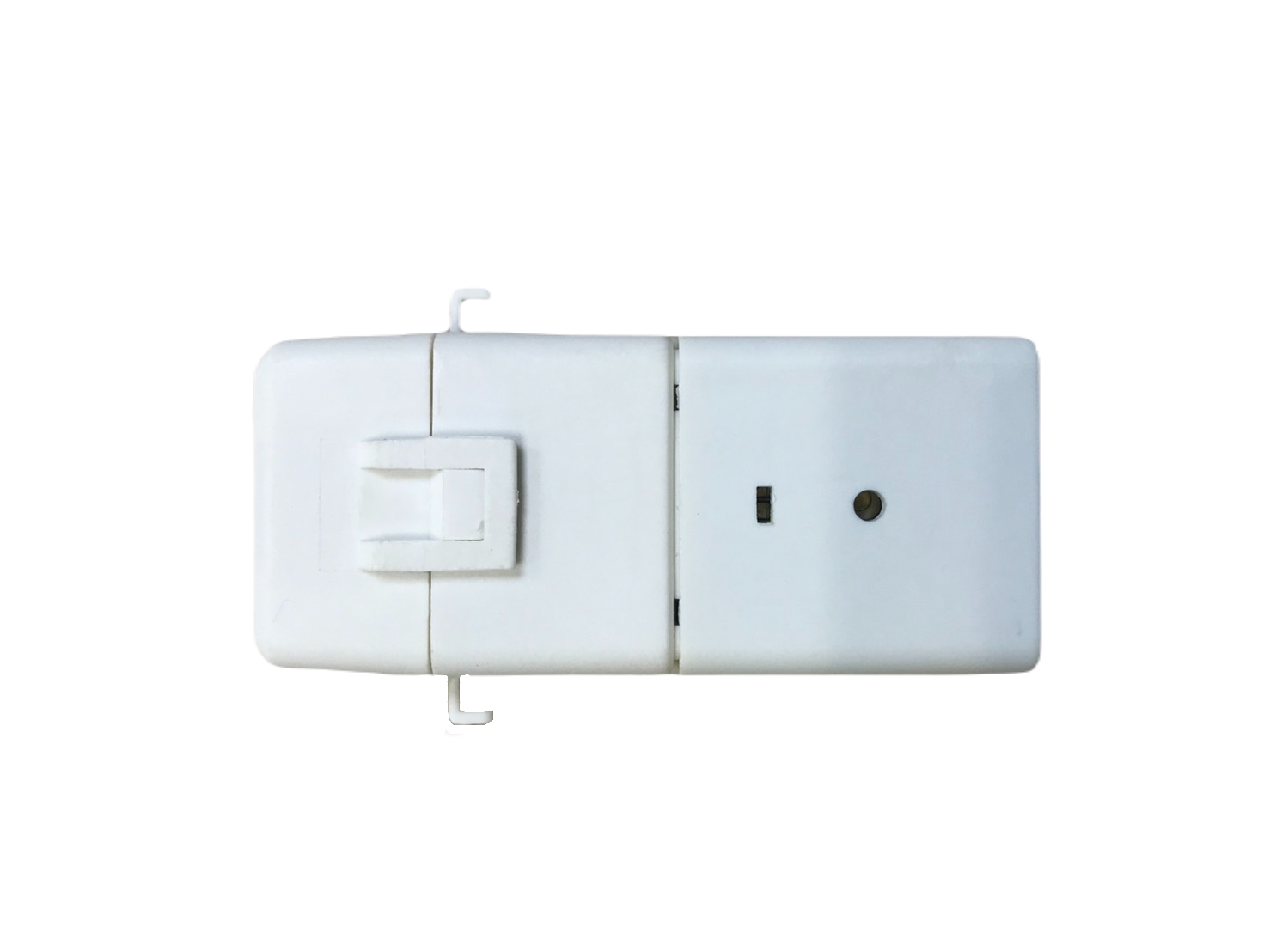

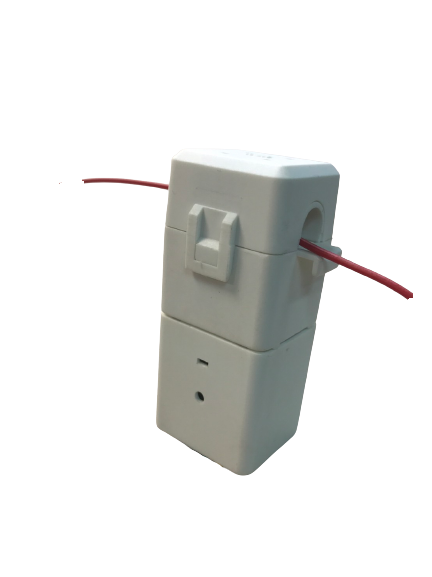

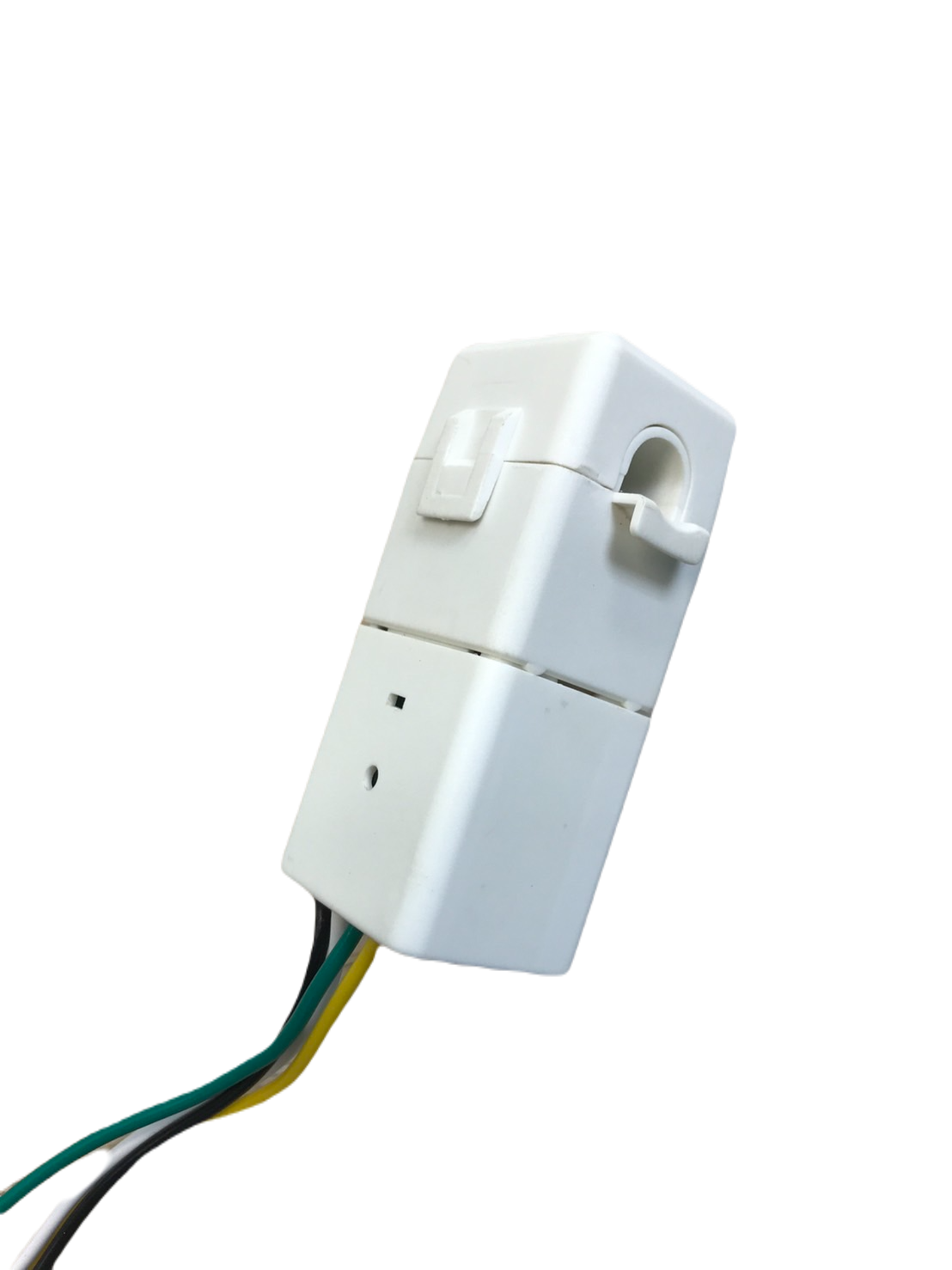

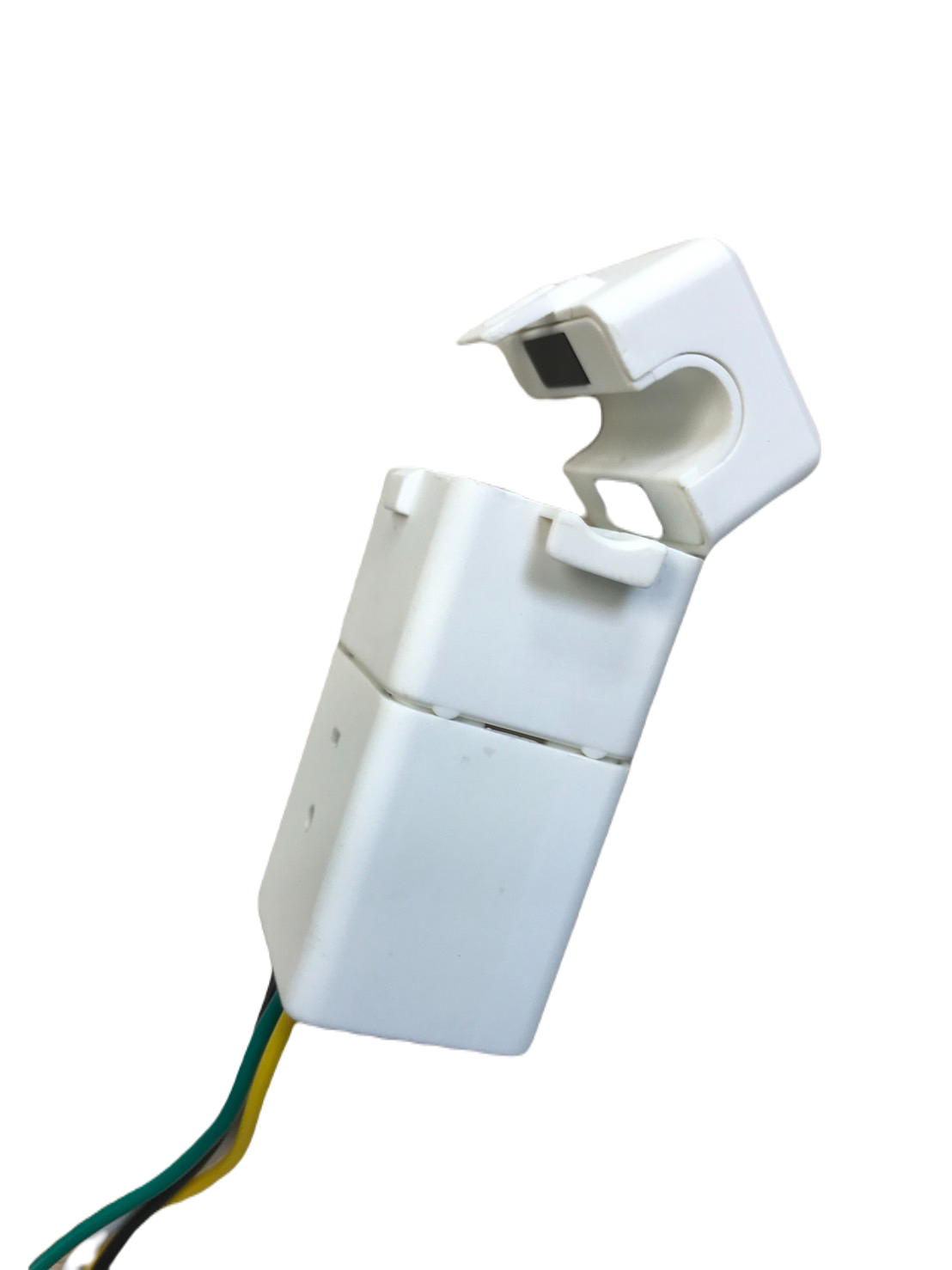

Power Switch Sensor
SEN-1102P
The most cost effective solution to detect power is ON/OFF
Made in fire proof material to prevent accident
The most cost effective solution to detect power is ON/OFF
Made in fire proof material to prevent accident

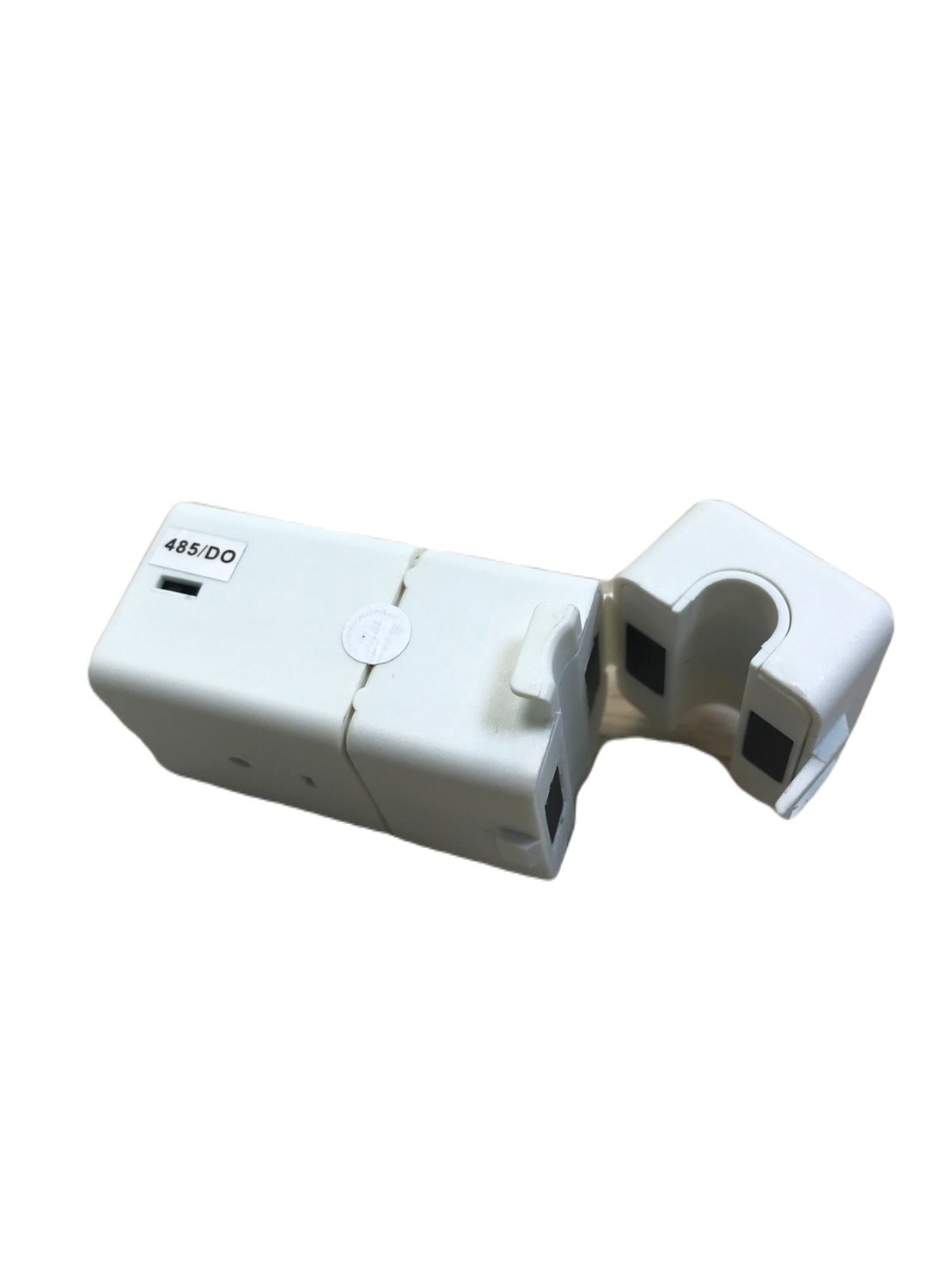

Switch between Digital Output and RS-485 communication for different applications
Wild range of current detection
Current ratio can be saved for the next detection and identification
Support 32 sets of ID for furthur integration and application
LED light to present the status clearly
SPECIFICATION & I/O INTERFACE
| Current Sensor | Max: 50A Min: 5mA |
| RS-485 | 1 x 2wires For RS-485 only |
| Digital Output | 1 x 2 wires For RS-422 only |
| Status LED | On: Detect current Off: Cannot detect current |
Others
| Power Supply | 12V |
| Power Consumption | Less than 50mW (35mA) |
| Operation Temp | -20°C to 75°C (4°F to 167°F) |
| Storage Temp | -40°C to 85°C (-40°F to 185°F) |
| Fixedness | |
| Dimension | 63 x 38 x 38mm |
