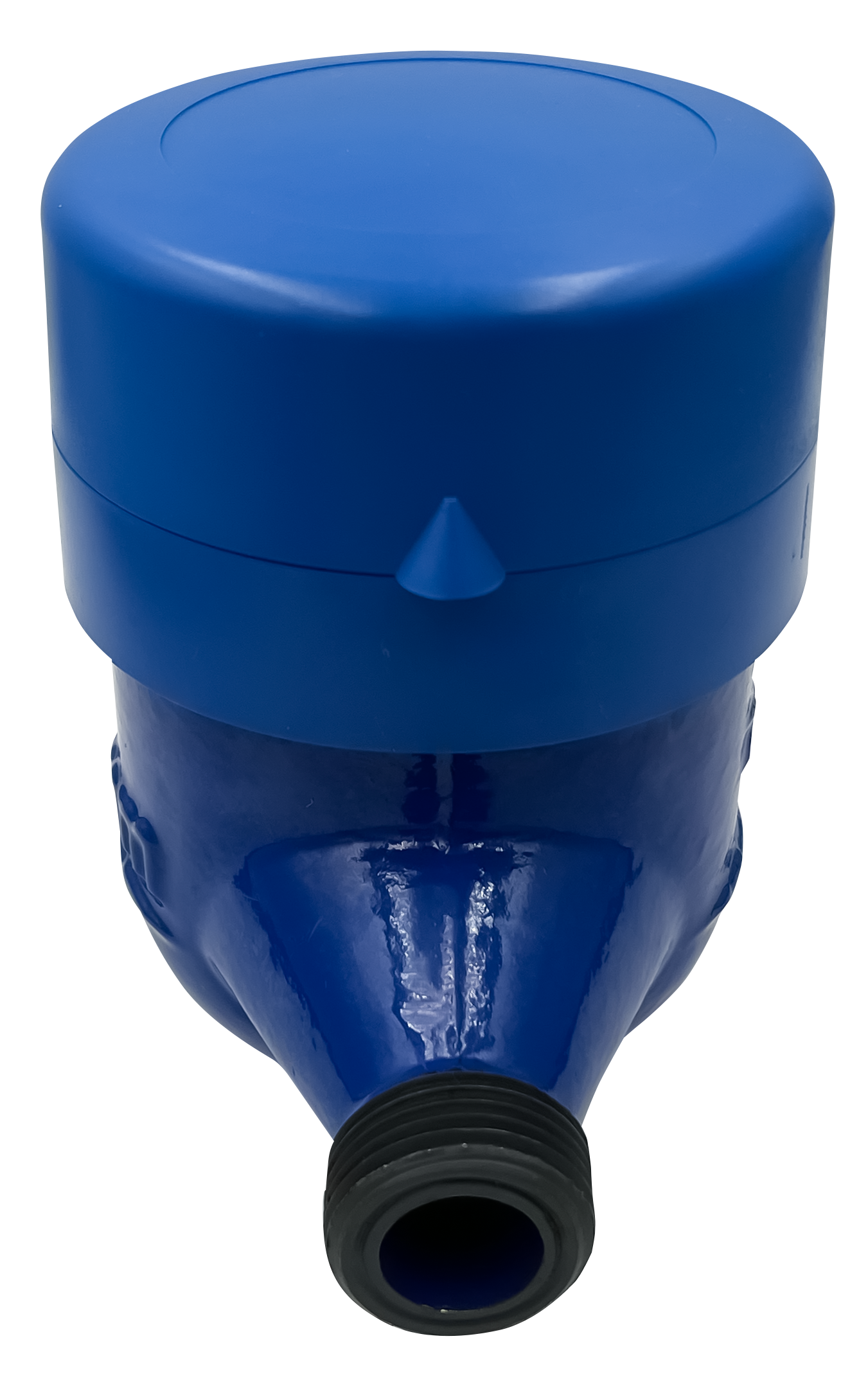

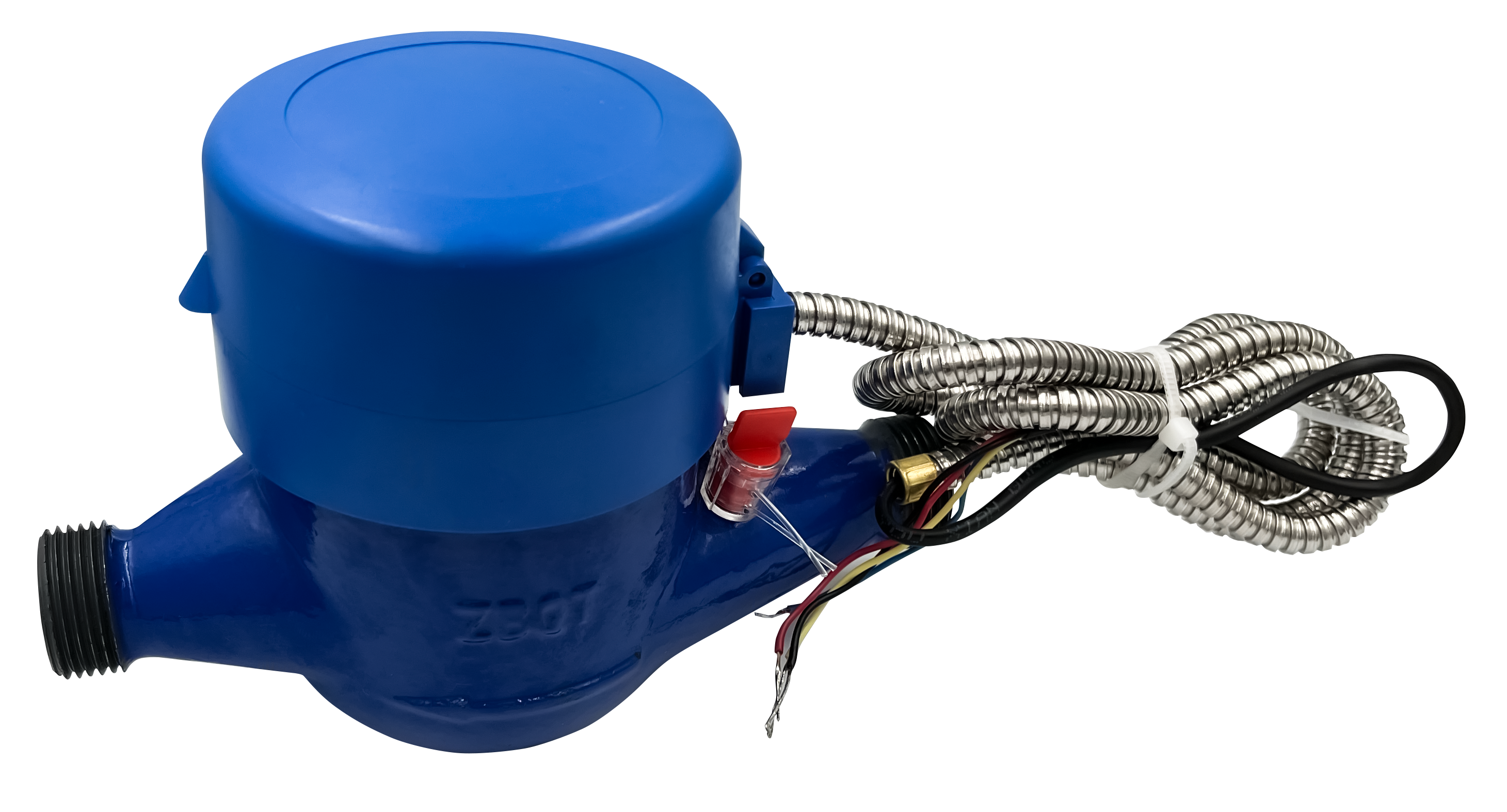

Water Flow Meter
SEN-1101WF
Waterproof-design for different fields
Able to be integrated into other systems via Modbus RTU
Waterproof-design for different fields
Able to be integrated into other systems via Modbus RTU
Embedded with battery which can last for more than 7 years
D15 design for most applications
SPECIFICATION & I/O INTERFACE
| Target | Water Flow |
| Detection Range | 31.25L/hr ~3125L/hr |
| Accuracy | < ±2% |
| Minimum Scale | 0.0001m³ |
| Waterproof | IP68 |
| Tube Dimension | DN15 |

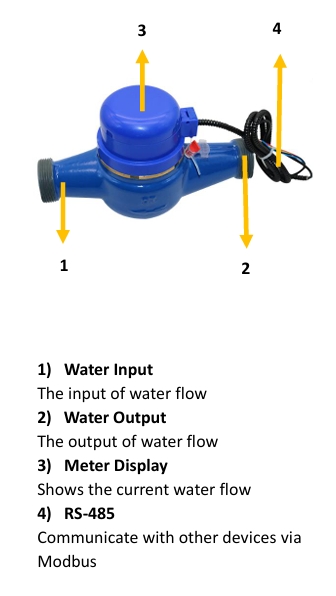

| RS-485 | 2pins-phoenix terminal block |

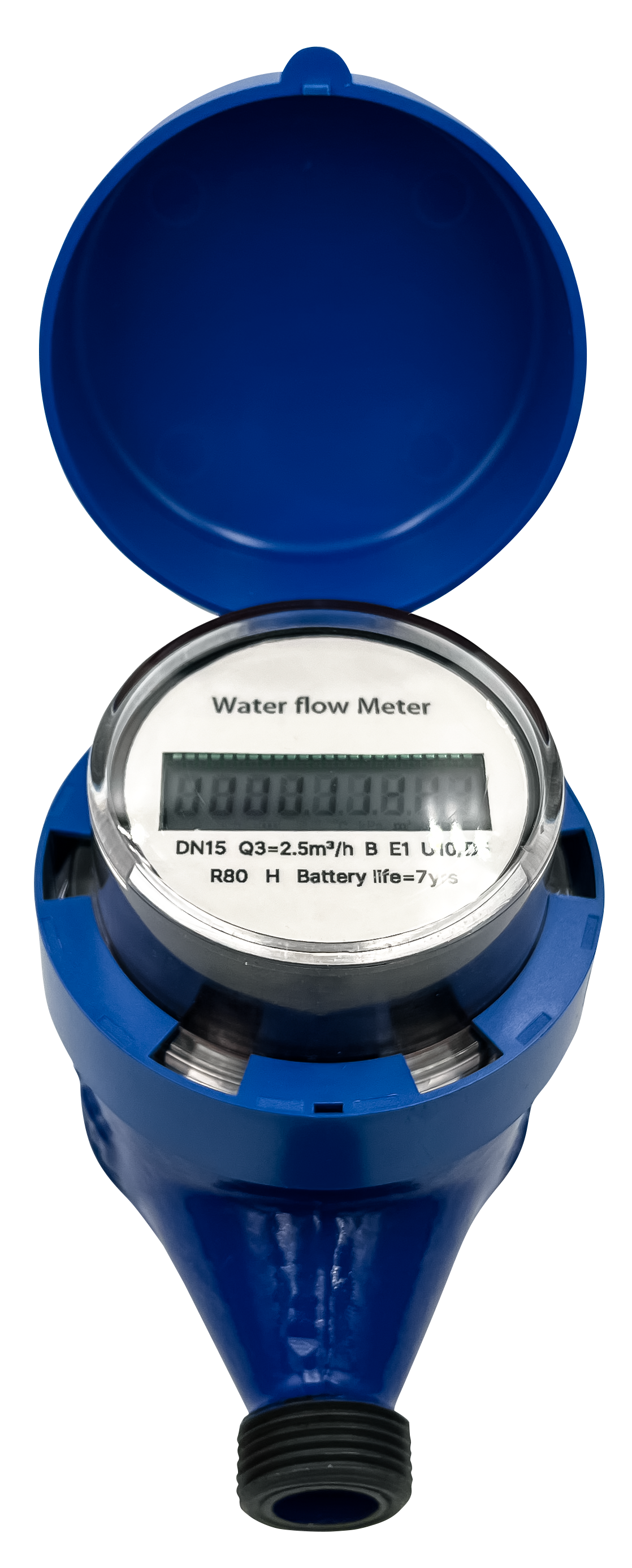

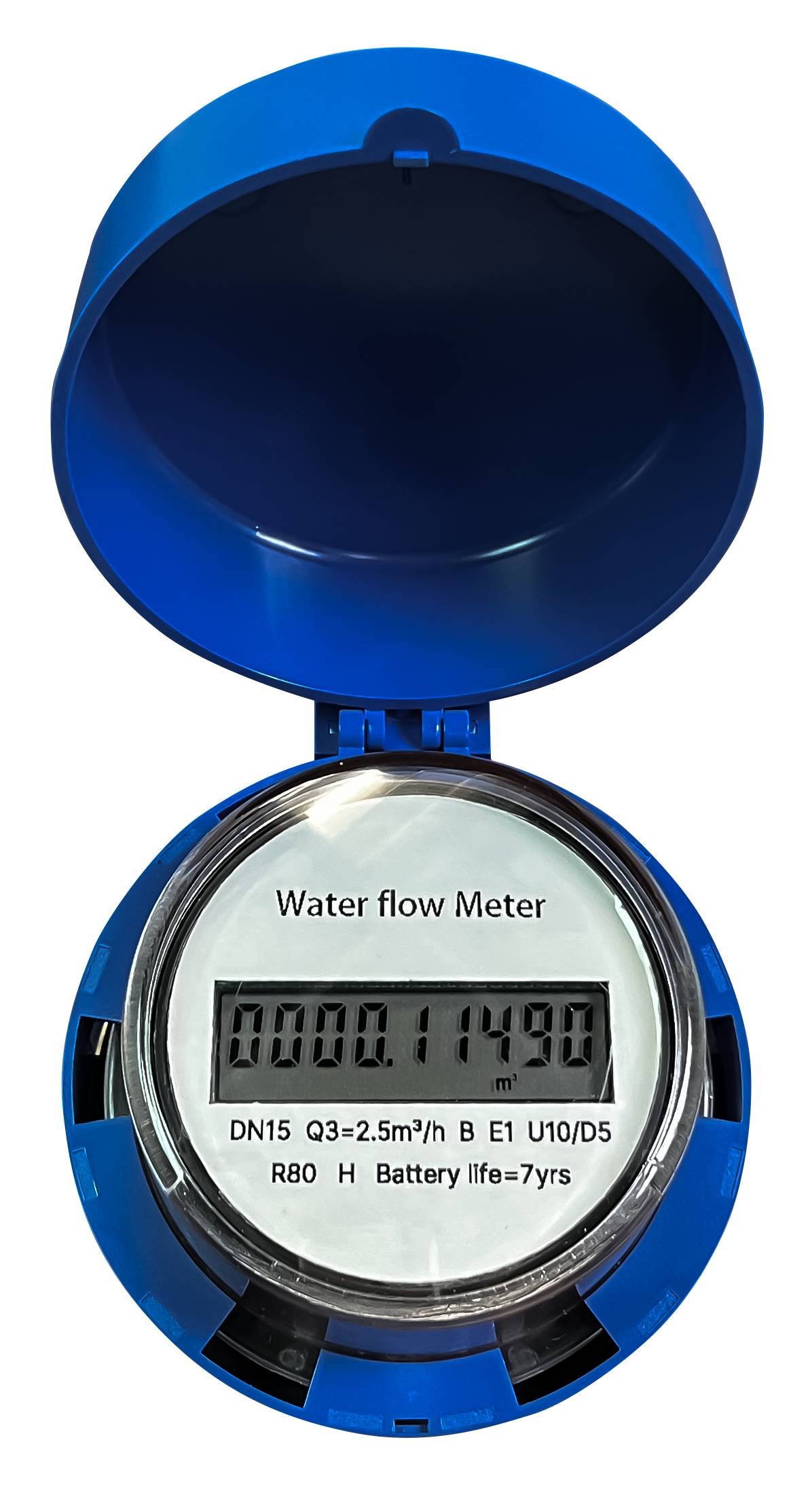

| Display | 9 digits display |
Others
| Power Supply | Battey inside |
| Power Consumption | |
| Operating Temperature | -10°C to 65°C (14°F to 149°F) |
| Storage Temperature | -20°C to 75°C (-4°F to 157°F) |
| Material | Metal |
| Mounting Type | N/A |
| Dimension | 259*95*112mm (HxWxD) |
