Air Quality Sensor for Toilet [H2S / NH3 / Thermometer]
SEN-3202TL
All-in-one design with a compact dimension
The most cost-effective solution for monitoring toilet air quality
All-in-one design with a compact dimension
The most cost-effective solution for monitoring toilet air quality
Support MQTT/Modbus for further integration
All-in-one design including NH3/Temperature/Humidity

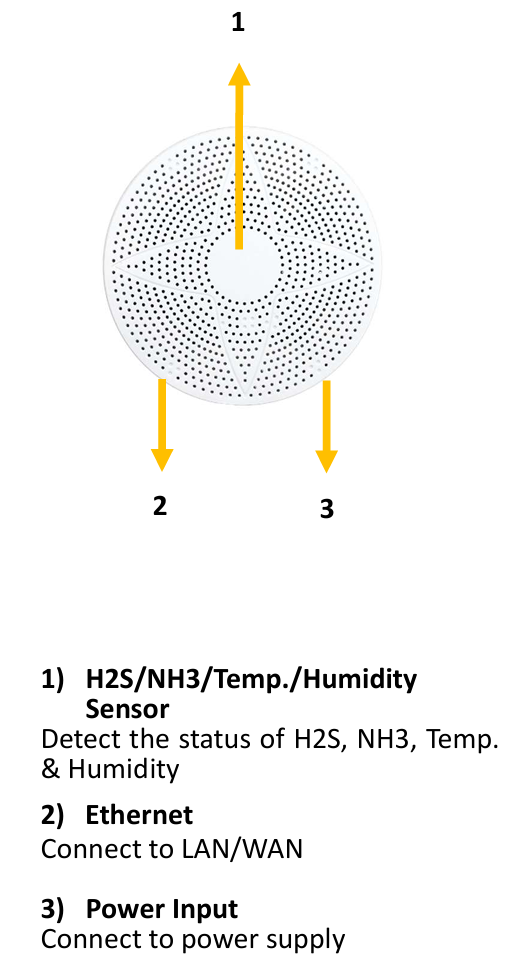

SPECIFICATION & I/O INTERFACE
| NH3 Detection | Range: 0~20ppm Scale: 0.1ppm Accuracy: ＜±3% |
| H2S Detection | Range: 0~20ppm Scale: 0.1ppm Accuracy: ＜±3% |
| Temp. Detection | Range: -40~100℃ Scale: 0.1℃ Accuracy: ＜±0.5℃ |
| Humidity Detection | Range: 0~100% RH Scale: 0.1% RH Accuracy: ＜±3% RH |
| Ethernet | 1 x RJ-45 10/100Mbps |
Others
| Power Supply | 12V DC |
| Power Consumption | 3W |
| Operating Temperature | -20°C to 75°C (4°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimension | 168x168x33mm (HxWxD) |
