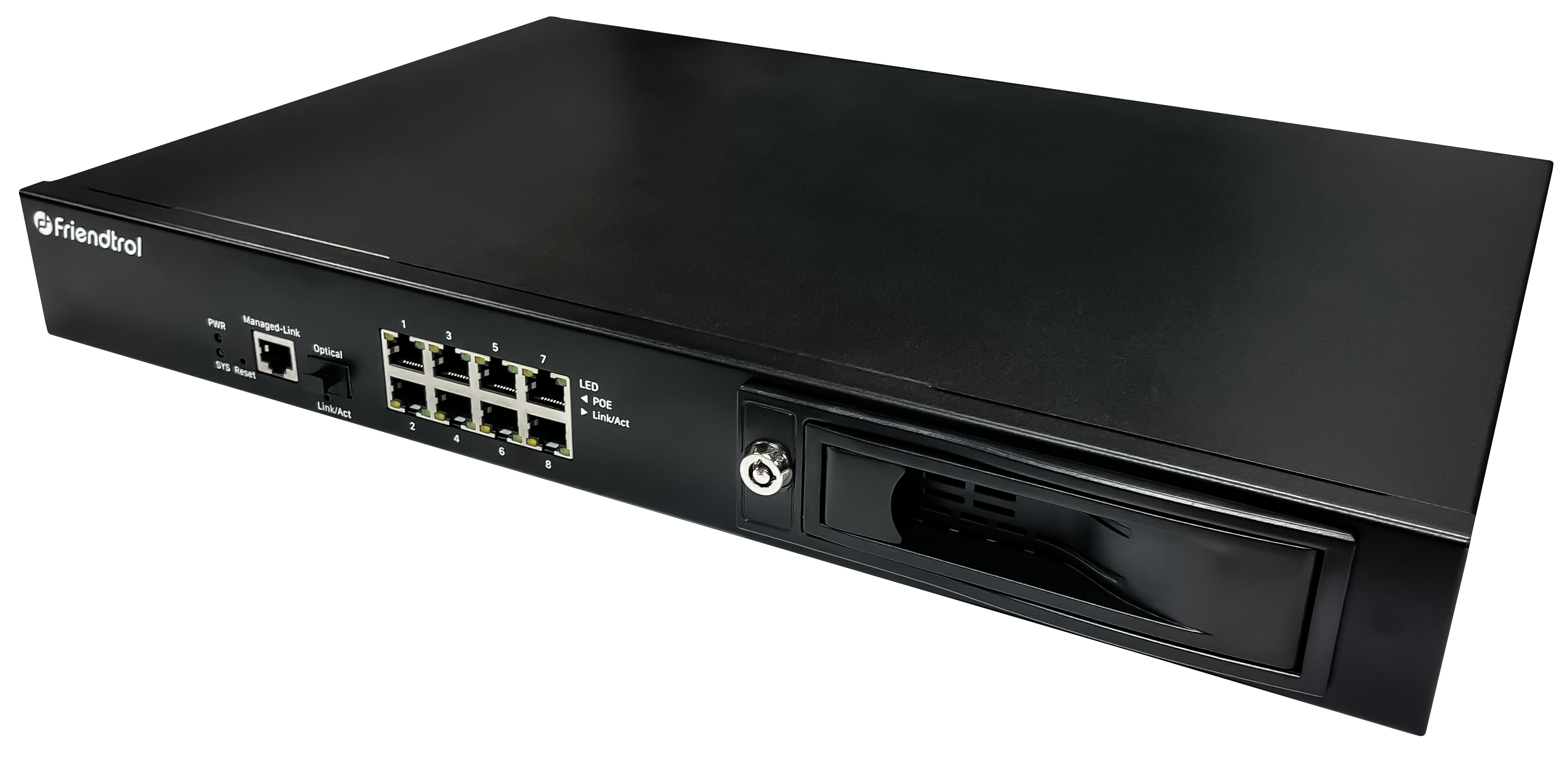

Mini Server with 8-Port Managed PoE Switch

SW-5108D

Integrated Intel® platform with built-in PC and HDD for hosting 3rd-party software
Supports local data storage and processing, ensuring data sovereignty without cloud dependency.

Request a Quote

Integrated Intel® platform with built-in PC and HDD for hosting 3rd-party software
Supports local data storage and processing, ensuring data sovereignty without cloud dependency.
Combine server and PoE switch in one device to reduce hardware cost and rack space
Support HTTP-based control for PoE ports, enabling remote reboot and real-time status monitoring
Provide user-friendly graphical interface for per-port power monitoring and independent PoE control
Independently detect power and current for each LAN port
Support IP watchdog to automatically reboot unresponsive devices for troubleshooting

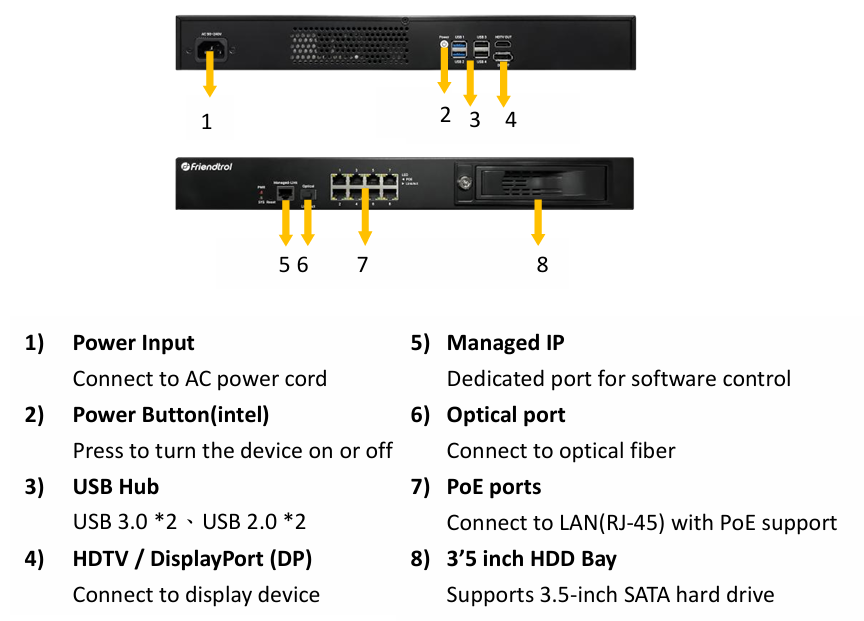

SPECIFICATION & I/O INTERFACE

CPU	Intel® Celeron® J6412
CPU Frequency	2.6 GHZ
Memory	RAM 8GB
Storage	M.2 256GB
Ethernet	8 x 10/100/1000 MbE (PoE) 1 x Managed IP 1 x 1GbE optical port
PoE	Support up 30W for each port
Switch Type	L2+/Lite L3 management switch
Operating System	User-installable OS
Architecture	x86 platform

Management Characters

System	System information, log information, port information, link aggregation, MAC address table
Network	DNS configuration, DNS host configuration, system time
Ports	Port Configuration, Port Anomaly Protection, Link Aggregation, EEE Configuration, Jumbo Frame Configuration, Port Security, Port Isolation, Storm Control
VLAN	VLAN configuration, Voice VLAN, Protocol VLAN configuration, MAC VLAN configuration, Surveillance VLAN, GVRP
Mac Address	Dynamic MAC address table, static MAC address table, MAC address filtering table, port security MAC address table
Spanning Tree Protocol	Function settings, port settings, instance settings, instance port settings, message statistics
ERPS	Functional Configuration, ERPS Example
DHCP	Feature configuration, address pool configuration, VLAN interface address group configuration, client list, client static binding table
Multicast	Basic Functions、IGMP Snooping、MLD Snooping、MVR
Routing	IPv4 Management Interface, IPv6 Management Interface, Static routing

Security	RADIUS、TACACS+、AAA、Management channel configuration, authentication features, port security, port isolation, storm control、 DoS anti-attack, dynamic ARP inspection、DHCP Snooping、IP Source Guard
ACL	MACACL、MAC ACE、PV4 ACL、PV4 ACE、Pv6 ACL、PV6 ACE 、ACL binding
QoS	Basic Functions, Bandwidth Limiting
Equipment Diagnostics	Logging function、 mirroring function、Ping、Traceroute、Electrical port testing、 optical module information、 UDLD protocols
Equipment Management	User configuration, firmware management, configuration management, SNMP configuration, RMON configuration

Functional Characteristics

Type	Store-and-forward
Switching capacity	28Gbps
Packet forwarding ratio	20.832Mpps
MAC Address Table	4K
Forwarding Delay	<5us<>
Network Technology	Support ring topology, star topology, bus topology, tree topology, etc.
Jumbo Frame	Support 10K Bytes
