Information Signage Controller
CTR-3302
Solid hardware design for most cases usage
The most cost-effective solution for information display
Solid hardware design for most cases usage
The most cost-effective solution for information display
Built-in FVS (Friendtrol Visualization System) to create unique layout easily and quickly
Support HDMI2.0 4K2K60 for better video quality
Support multiple USB ports

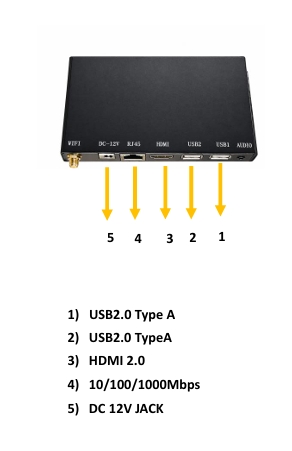

SPECIFICATION & I/O INTERFACE
| CPU | Quad-core Cortex-A53 |
| CPU Frequency | 1.2GHZ |
| Memory | 2G RAM |
| Storage | eMMC 16GB |
| Ethernet | 1x 10/100/1000Mbps |
| USB | 2x USB2.0 Type A |
| HDMI | HDMI2.0 Type A |
Others
| Power Supply | 12V DC |
| Power Consumption | 7W |
| Operation Temp. | -10°C to 65°C (14°F to 149°F) |
| Storage Temp. | -20°C to 75°C (4°F to 167°F) |
| Fixedness | Mounting ear with screws |
| Dimension | 90x85x26 mm (WxDxH) |
